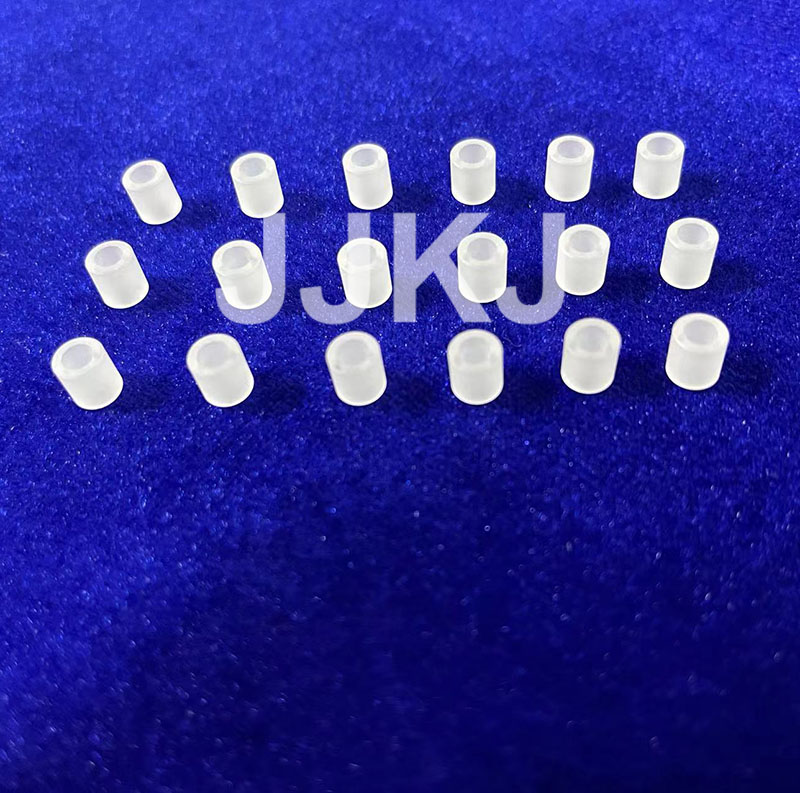

High Temperature Resistant Optic Sapphire C Axis Optical Sapphire Capillary Tube

Name: High Temperature Resistant Optic Sapphire C Axis Optical Sapphire Capillary Tube
Brand: jingjing
Price: 1 USD

China High Temperature Resistant Optic Sapphire C Axis Optical Sapphire Capillary Tube wholesale

Brand Name : jingjing

Place of Origin : China

MOQ : 10 pcs

Payment Terms : T/T,Western Union,

Supply Ability : 100000 pcs/Month

Delivery Time : 1-4 weeks

Certification : ISO9001

Product Name : Sapphire Optical Tube

Material : Sapphire

Growth method : kyropoulos method

Orientation : C-axis

Fusion point : 2045℃

Boiling point : 2980℃

Outside diameter : 5-200mm

Tolerance : ±0.05mm

Wall thickness : ≥1mm

Length : 1-110mm

Length Tolerance : ±0.05mm

Surface : Fine Grinding

Contact Now

High Temperature Resistant C-axis Optical Sapphire Glass Tube

Why Choose Sapphire?
Sapphire is composed of alumina, and its crystal structure is hexagonal lattice structure.
Synthetic sapphire common application facets are A-Plane,C-Plane, and R-Plane. Due to the wide optical penetration band of sapphire, it has good light transmission from near ultraviolet (190nm) to mid-infrared. Therefore, it is widely used in optical components, infrared devices, high-intensity laser lens materials.
Sapphire also has the characteristics of high sound velocity, high temperature resistance, corrosion resistance, high hardness, high light transmittance, high melting point (2045℃), etc., so it is often used as a material for photoelectric components.

Product Paramenters:

Product Name	Sapphire tube
Materials	Optical Sapphire
Orientation	C-axis
Outside diameter	5-200 mmm
Diameter Tolerance	±0.05 mm
Wall thickness	≥1 mm
Length	1-110 mm
Length Tolerance	±0.05 mm
Surface quality	60/40
Clear Aperture	90%

High Temperature Resistant Optic Sapphire C Axis Optical Sapphire Capillary Tube

Our related products:

High Temperature Resistant Optic Sapphire C Axis Optical Sapphire Capillary Tube

FAQ:
1. Can you accept OEM?
Of course,we can manufacture as per your request specification.

2. Can you deliver the goods via our shipping agent?
It's our pleasure to make the delivery using your shipping agent

3. What about your After-sales service?
We can change or refund products if there are any quality problem.

If you need more professional help, please contact us. Our technical engineers
would like to give advices according to your requirements
